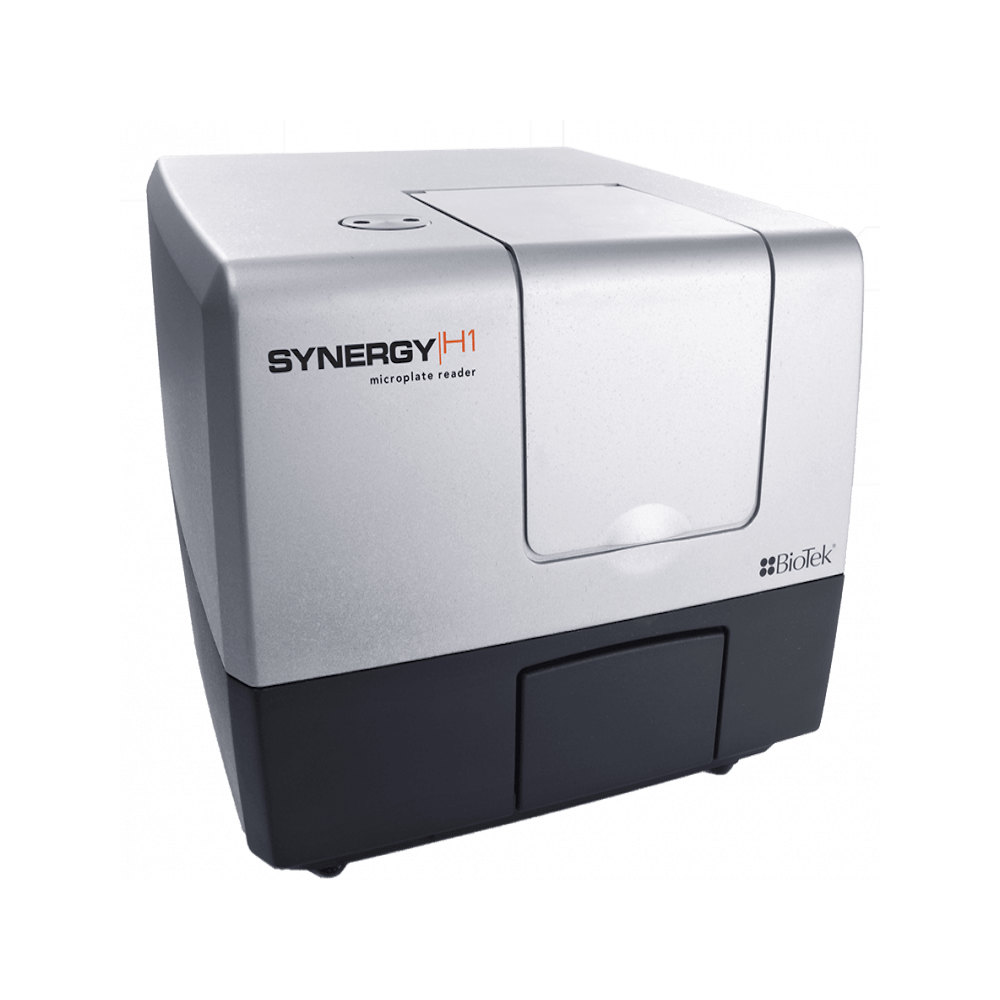

Synergy H1 Hybrid Micro. Reader

Location - Britannia 107

For enquiries, please contactRavit Ziv



Instrument details

The Synergy™ H1 was acquired in 2019 from Biotek.

It is a flexible monochromator-based multi-mode microplate reader that can be turned into a high-performance Hybrid System with the addition of a filter-based optical module.
The monochromator optics use a third generation quadruple grating design that works at any excitation or emission wavelength with a 1 nm step.

Patented Hybrid Technology™ combines flexible monochromator detection with high performance dichroic-based filter detection.

Green FP filter set: EX 485/20 | EM 528/20 | DM 510, polarizers

Automatic top and bottom epifluorescence read modes optimized for both sensitive homogeneous and cell-based assays Software-controlled automatic probe height adjustment with built-in plate sensor to prevent probe crashes Scanning monochromator for wavelength scans to identify peak absorbance and provide full spectral analysis Luminescence measurements with top detection for best sensitivity Reads 6- to 384-well plate formats including PCR trays and Terasaki plates Well area scanning for popular cell-based assays Time Resolved Fluorescence capability and FP.
